PRECIOUS FUN

AND PERFORMANCE

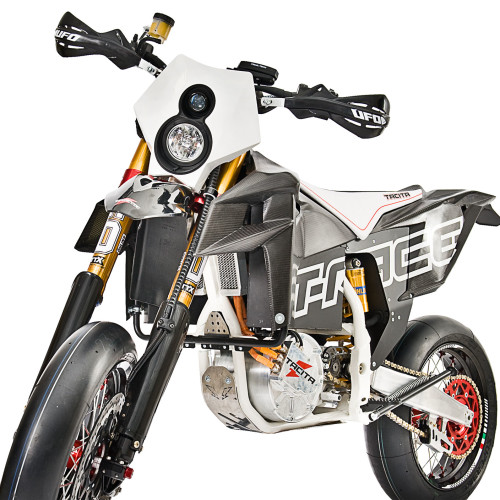

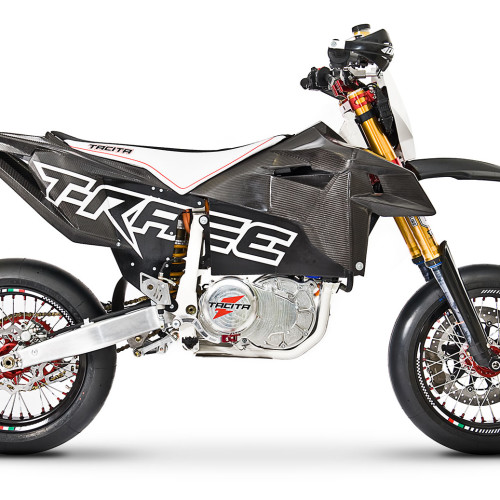

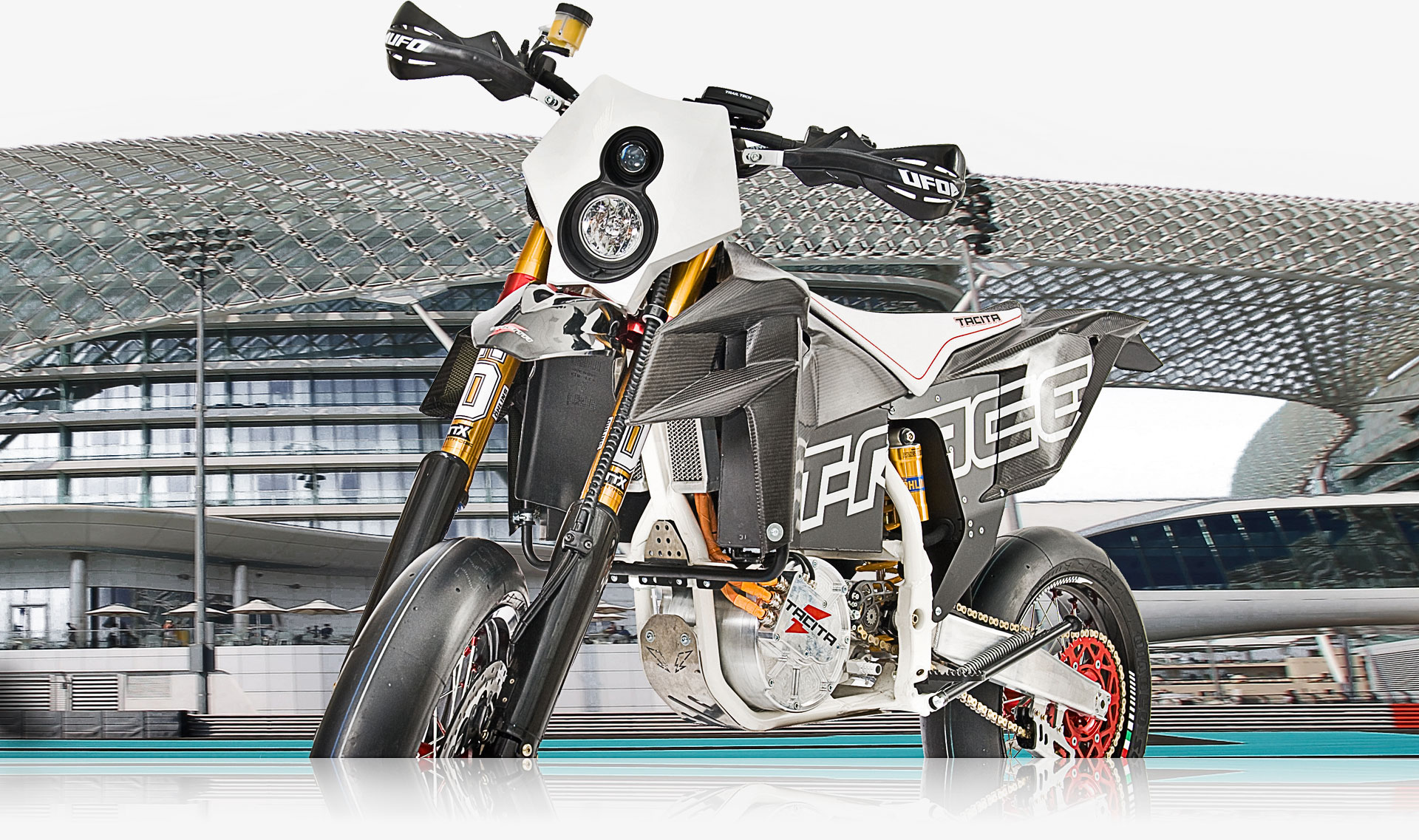

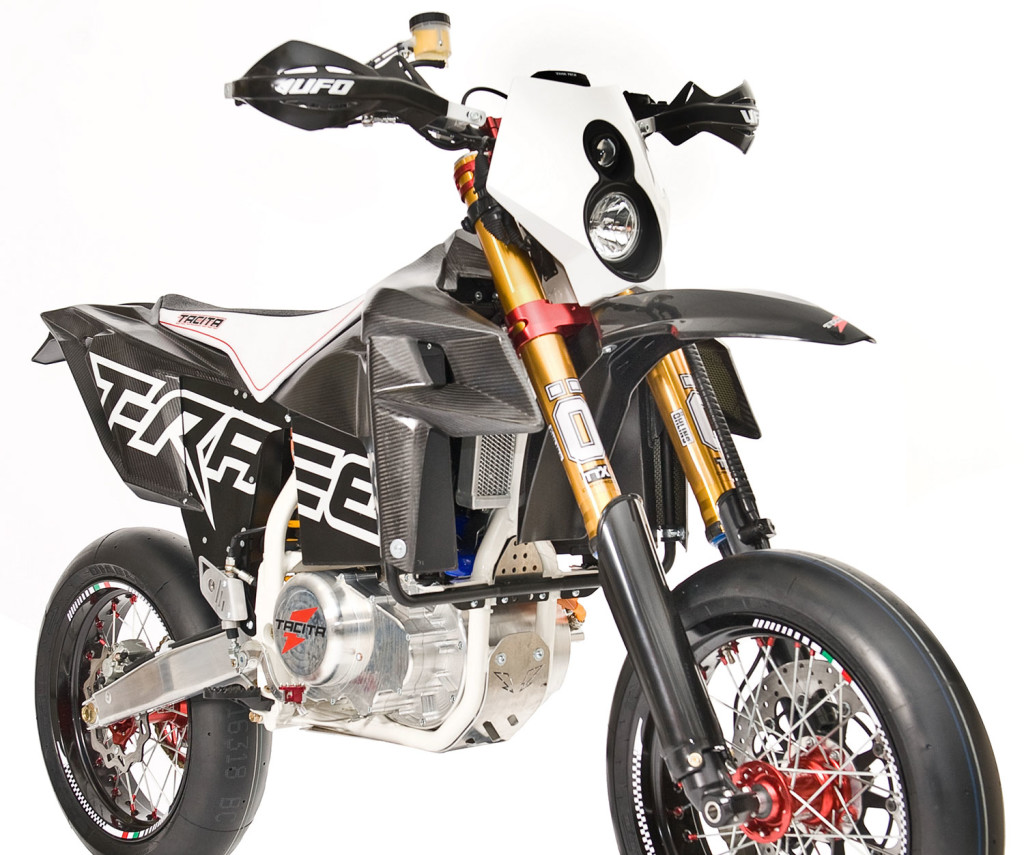

Made with top-specs components, the supermotard version of Tacita T-Race is the sublimation of fun and performance. All the features of this version are blended to maximize the torque of the electric motor. On-track performance tires, Brembo radial brakes and Öhlins Racing suspensions are just some of the details that make this bike a beast of the track

BATTERY LIFE 4000 CYCLES
Öhlins TTX suspension
limited edition
5 speed gear
27 kW engine
100% green

engine

27 kW power unit

gearbox

5 speed separate gearbox with hydraulic clutch

rear

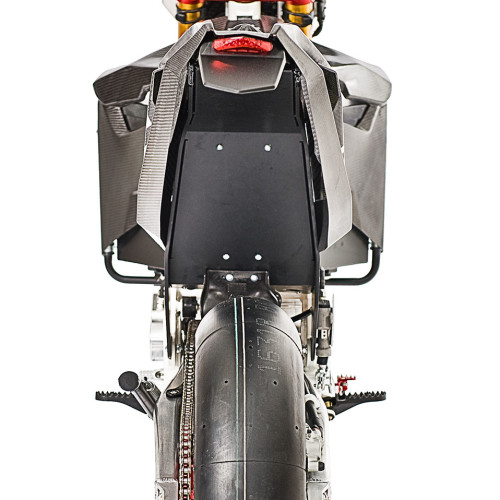

aluminum rear monocoque

motor

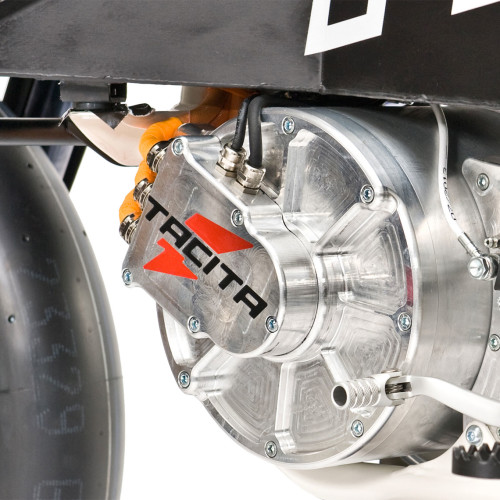

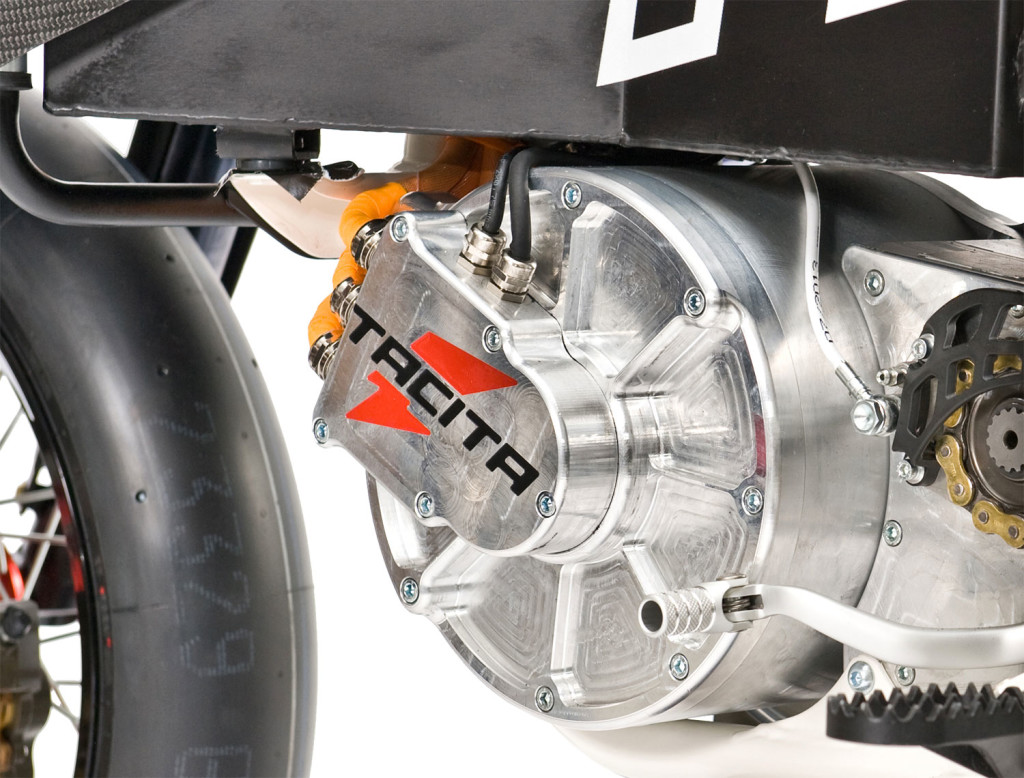

asynchronous electric motor three-phase induction

BRAKE

two maps of motor brake

BODY

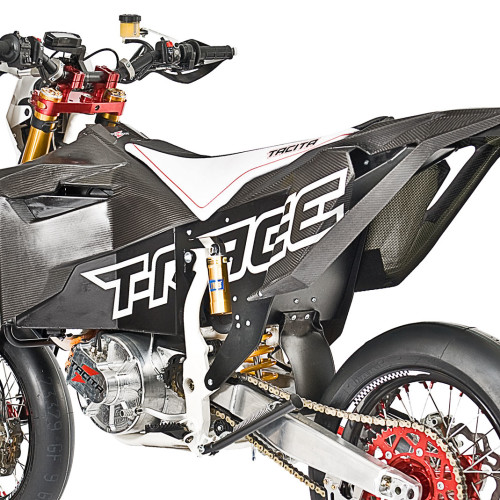

carbon-kevlar fairing

LIMITED EDITION

ÖHLINS TTX SUSPENSION

BREMBO RADIAL CALIPERS

technical specifications

ENGINE: ELECTRIC ASYNCHRONOUS THREE-PHASE INDUCTION

MAPPINGS: MUD AND SPORT

COOLING SYSTEM: LIQUID-TYPE, WITH CIRCUITS FOR MOTOR AND CONTROLLER

TRANSMISSION: 5-SPEED GEARBOX WITH HYDRAULIC CLUTCH

TRACTION BATTERY: LI-PO LYTHIUM POLYMER BATTERY 4.0 kWh or 5.3 kWh

BATTERY LIFE: UP TO 2000 CYCLES TO 80% INITIAL CAPACITY

MAX POWER : 27 kW

MAX RPM : 9000

MAX TORQUE : 55 Nm

WHEEL BASE : 1470 mm

FRAME: SPLIT SINGLE-BEAM IN CROME-MOLYBDENUM

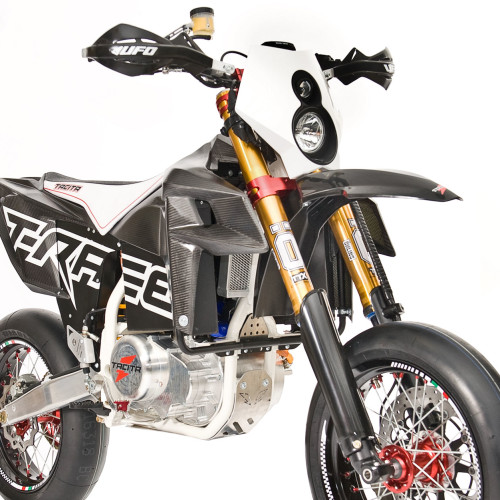

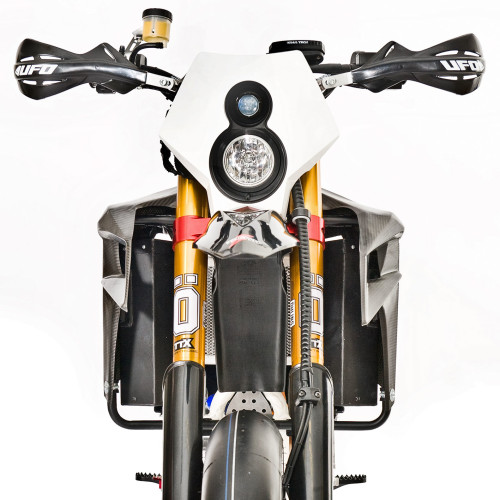

FRONT SUSPENSION: UPSIDE-DOWN OHLINS TTX TELESCOPIC HYDRAULIC FORK, WITH ADVANCED AXLE 48 mm DIAM.

REAR SUSPENSION: PROGRESSIVE LINK WITH OHLINS FULLY ADJUSTABLE SUSPENSION UNIT. COMPRESSION AT HIGH AND LOW SPEED AND SEPARATELY ADJUSTABLE REBOUND DAMPING

SUSPENSION TRAVEL: 270 mm

FRONT WHEEL: 3.5 x 17” – TYRES 120/70-17 PIRELLI DIABLO SBK

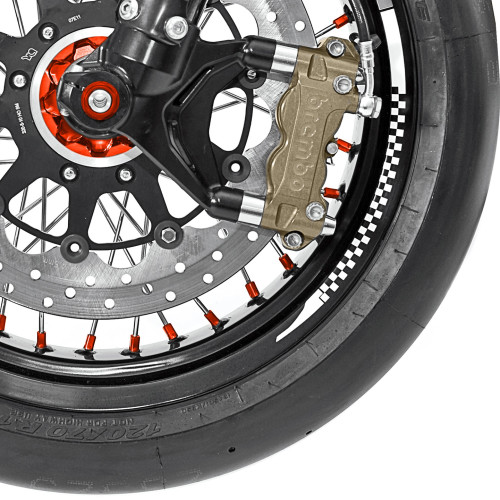

FRONT BRAKE: BREMBO RADIALLY MOUNTED 4 PISTONS CALIPERS FLOATING DISC, 320 mm DIAMETER

REAR WHEEL: 4.25 x 17” – TYRES 160/60-17 PIRELLI DIABLO SBK

REAR BRAKE: 220 mm DISC

REGENERATIVE BRAKING

2 MAPS ENGINE BRAKE: NO ENGINE BRAKE (2-STROKE ENGINE STYLE)

OR WITH ENGINE BRAKE (4-STROKE ENGINE STYLE) AND REGENERATIVE BRAKING

BODY: KEVLAR AND CARBON FIBER

APPROVED FOR PASSENGER

RANGE: UP TO 1h 15 min (before the “RESERVE POWER” level) or UP TO 2h (5.3 kWh MODEL)

RESERVE POWER: automatically activated at 20% of remaining charge,

reducing performance to reach the nearest charging point.

CHARGING TIME:

50 min to the FULL CHARGE from “RESERVE POWER” level, by the 6 kW charger on the 5.3 kWh model

1 h 30 min to the FULL CHARGE from the “RESERVE POWER” level, by the 3 kW charger on the 4.0 kWh model

4 h to the FULL CHARGE from the “RESERVE POWER” level , by the 1 kW charger on the 4.0 kWh model

To see all the tech specs

DATASHEET

The technical and aesthetic characteristics of the products may be changed without notice from Tacita srl. Images may not reflect the characteristics of the newer models. Tacita srl reserves the right to make improvements and / or changes to the project without any obligation to release.
