NO COMPROMISE

READY TO RACE

This motorbike is developed to obtain the best on the cross track. Lightweight and powerful, aggressive and sharp.

If you are looking for a bike that allows you to race on a cross track with the beauty of driving without noise, this is the bike.

Get ready to taste the electric boost!

BATTERY LIFE 4000 CYCLES
increased power
minimum weight
2 maps - power and mud
fast charging

maps

two maps of motor power

gearbox

5 speed separate gearbox with hydraulic clutch

rear

aluminum rear monocoque

motor

asynchronous electric motor three-phase induction

BRAKE

two maps of motor brake

BODY

carbon-kevlar fairing

2 MAPS - POWER AND MUD

MINIMUM WEIGHT

MAXIMUM POWER

technical specifications

ENGINE: ELECTRIC ASYNCHRONOUS THREE-PHASE INDUCTION

MAPPINGS: MUD AND SPORT

COOLING SYSTEM: LIQUID-TYPE, WITH CIRCUITS FOR MOTOR AND CONTROLLER

TRANSMISSION: 5-SPEED GEARBOX WITH HYDRAULIC CLUTCH

TRACTION BATTERY: LI-PO LYTHIUM POLYMER BATTERY 4.0 kWh

BATTERY LIFE: UP TO 4000 CYCLES TO 80% INITIAL CAPACITY

MAX POWER: 27 kW

MAX RPM: 9000

MAX TORQUE: 55 Nm

WHEEL BASE: 1490 mm

FRAME: SPLIT SINGLE-BEAM IN CROME-MOLYBDENUM

GROUND CLEARANCE: 330 mm

FRONT SUSPENSION: UPSIDE DOWN MARZOCCHI TELESCOPIC HYDRAULIC FORK WITH ADVANCED AXLE 45 mm DIAM

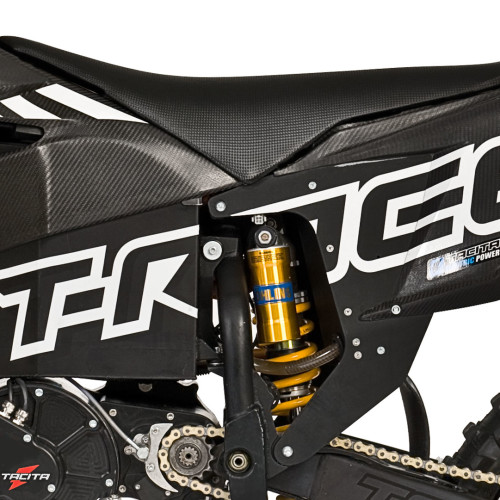

REAR SUSPENSION: PROGRESSIVE LINK WITH OHLINS FULLY ADJUSTABLE SUSPENSION UNIT. COMPRESSION AT HIGH AND LOW SPEED AND SEPARATELY ADJUSTABLE REBOUND DAMPING

SUSPENSION TRAVEL: 300 mm

FRONT WHEEL: 1.60 X 21” – TYRES 80/100-21

FRONT BRAKE: FLOATING DISC – 300 mm DIAMETER

REAR WHEEL: 2.15 X19 “ – TYRES 100/90-19

REAR BRAKE: 220 mm DISC

REGENERATIVE BRAKING

2 MAPS ENGINE BRAKE: NO ENGINE BRAKE (2-STROKE ENGINE STYLE) OR WITH ENGINE BRAKE (4-STROKE ENGINE STYLE) AND REGENERATIVE BRAKING

BODY: KEVLAR AND CARBON FIBER

RANGE: up to 1h 15 min (before reserve power)

RESERVE POWER: automatically activated at 10% of remaining charge, reducing performance to reach the paddock.

CHARGING TIME:

50 min to the FULL CHARGE from “RESERVE POWER” level, by the 3 kW charger

4 h to the FULL CHARGE from “RESERVE POWER” level, by the 1 kW charger

To see all the tech specs

DATASHEET

The technical and aesthetic characteristics of the products may be changed without notice from Tacita srl. Images may not reflect the characteristics of the newer models. Tacita srl reserves the right to make improvements and / or changes to the project without any obligation to release.
